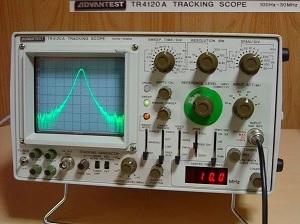

TR4120A

Você esta em: Categoria Analisador de Espectro TR4120A
Advantest
Disponibilidade
Locacao
Valor Sob Consulta
Descrição
The TR4120A is a tracking scope having the following performance:
Measurement range: 100 Hz to 30 MHz
Resolution: Max. 10 Hz
Input sensitivity: Max. -135 dBv
Dynamic range: 80 dB

Fuerthermore, since TR4120A includes a tracking generator, it directly reads and analyzers the frequencycharacteristics in addition to analyzing the spectrum. Also, connecting an ADVANTEST frequency counter to this device provides a function to read the frequency on the marker point at an accuracy specified by the frequency counter.

This tracking generator is operated as a selecive amplifier (or tuned amplifier). Using this function, some weak signal is selected and amplified. The ON-AIR signal can be measured at an accuracy specified by the carrier frequency counter.







Specifications
Frequency
Range:

100 Hz to 30 MHz
Center frequency accuracy:

Within ±500 kHz
Frequency span:

At SPAN/DIV switch 50 Hz/div to 20 MHz/div 1,2,3 step
Frequency span:

Within ±10%
Stability:
Residual FM:
Noise sideband:
5 Hz (after automatic stabilization)
Less than -55 dB (at 100 Hz IF bandwidth, more than 2 kHz away from carrier)
Resolution:
3 dB bandwidth:
10 Hz to 100 kHz 1, 3 setp
