MS610C

Você esta em: Categoria Analisador de Espectro MS610C
Anritsu
Disponibilidade
Locacao
Venda
Download Manual
Valor Sob Consulta
Descrição

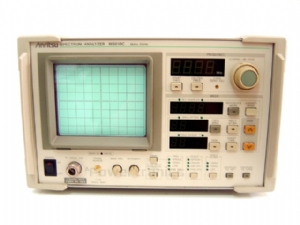

The Anritsu MS 610 C is a small, portable Spectrum Analyzer covering the frequency range from 9 kHz....2GHz.

The MS 610 C spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the analyzer.
Digital display of center frequency and measurement level.
Keyboard entry of most parameters.

Some applications for Anritsu MS 610C spectrum analyzer include:
• Site monitoring: Verify that the frequency and signal strength of your transmitter is accurate.
• Interference: Before a system is installed you use a Anritsu MS610C spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations.
• Other tests that utilize the Anritsu MS610C spectrum analyzer features include antenna isolation, co-channel interference, adjacent channel power, occupied bandwidth, intermodulation, microwave or satellite antenna alignment and characterization of components.

Technical data
• Measurernent level range: -115....+20 dB
• Resolution bandwidth: 1 kHz....1 MHz
• Input impedance: 50 ohms
• Frequency range: 9 kHz....2 GHz
• Span (min./max.): 0.1 MHz....1 GHz
• Sweep time (min./max.): 10 ms....10 s
• Resolution bandwidth: 1 kHz....1 MHz
• Resolution bandwidth steps: 1 / 3 / 10
• Video bandwidth (min./max.): 100 Hz....10 kHz
• Video bandwidth steps: 1 / 10 / 100
• Maximum single-side-band noise: -70 dBc/Hz
• Maximum safe AC input: 20 dBm
• Maximum DC input: 100 V
• Maximum displayed average noise: -115 dBm
• Maximum amplitude uncertainty: 1.5 %
• Trigger modes: Freerun,TTL
• Connector type (main signal): Type N (f)
• Calibration output connector: Type BNC (f)

Opcionais e Acessórios
Modelos disponíveis
Modelos relacionados
