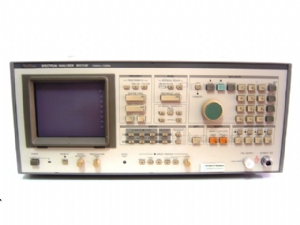

Anritsu MS710F 100kHz to 23GHz GHz Spectrum Analyzer

The Anritsu MS710F spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Anritsu MS710F. The CRT displays received signal strength (y-axis) against frequency ( x-axis).

Some applications for Anritsu MS710F Spectrum Analyzers include Site Monitoring: Verify that the frequency and signal strength of your transmitter is accurate. Interference: Before a system is installed you use a Anritsu MS710F spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations. Other tests that utilize the Anritsu MS710F spectrum analyzer features include antenna isolation, co-channel interference, adjacent channel power, occupied bandwidth, intermodulation, microwave or satellite antenna alignment, and characterization of components.

Performance Characteristics of the MS710F
Form Factor
Minimum Frequency
100 kHz
Maximum Frequency
23 GHz
Frequency Accuracy  5 %
Zero Span
Minimum Span  1 kHz
Maximum Span
3 MHz
Minimum Sweep Time
2 ms
Maximum Sweep Time  10 s
Minimum Resolution Bandwidth  100 Hz
Maximum Resolution Bandwidth
3 MHz
Resolution Bandwidth Steps
Minimum Video Bandwidth
1 Hz
Maximum Video Bandwidth
3 MHz
Video Bandwidth Steps
Maximum Single-Side-Band Noise
-75 dBc/Hz
Maximum Safe AC Input
30 dBm
Maximum DC Input
0 V
Minimum Displayed Average Noise
-115 dBm
Maximum Displayed Average Noise
-88 dBm
Maximum Dynamic Range
-100 dB
Maximum Amplitude Uncertainty
6.6666E-02 %
Trigger Source
Trigger Modes
Connector type (main signal)  Type-N(m)
