EM-6912

Você esta em: Categoria Antenas EM-6912
Electro Metrics
Disponibilidade
Locacao
Valor Sob Consulta
Descrição

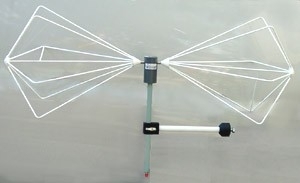

Abalun, feedline, and element cage the Electro-Metrics EM-6912 response curves that are almost linear, making it ideal for swept measurements. An added benefit is that the EM-6912 has an insensitive to changes of orientation while vertically polarized. Readings obtained will be the same no matter which eement is closest to the ground plane, eliminating a potential source of measurement error.

Applications
The EM-6912 Biconical antenna operates over tha 20 - 300 MHz frequency range. The antenna is ideally suited for use in FCC, SAE, and MIL-STD radiated emissions testing. The EM-6912 broadband frequency capability eliminates the need for band switching, element extension or external tuning when used for electromagnetic ambient surveys or spectrum signature measurements. The compact size of the EM-6912 is advantageous for use in anechoic chambers and shielded enclosures.








Specifications

Frequency Range:
20 - 300 MHz
VSWR:
Average: 1,4:1 with 6 dB pad
Maximum: 1:8,1 with 6 dB pad
Max. Cont. Power:
0,5 W
Peak Power:
1,0 W
Input Impedance:
50 Ohms
Output Connector:
BNC, female


Mechanical
Lenght:
129,8 cm
Diameter:
50,8 cm
Depth:
54 cm including balun
Weight:
2,7 kg (6 lbs.)
