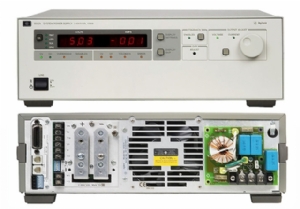

6032A

Agilent basic DC power supplies offer essential features for a tight budget. The single-output, autoranging 200 W and 1000 W GPIB 6030A-6033A, 6035A, and 6038A provide analog/resistance control of output voltage and current; series and auto-parallel connections of multiple supplies; and built-in measurements and advanced programmable features. The Agilent 1064W, single-output 6032A is an efficient solution for large demanding test systems that saves rack space and reduces system complexity.

Specifications

Output Ratings

• Voltage: 0 to 60 V
• Current: 0 to 50 A


Programming Accuracy at 25°C ±5°C

• Voltage: 0.035%, +40 mA
• Current: 0.2%, +85 mA


Ripple & Noise 20 Hz to 20 MHz

• Voltage rms: 8 mV
• Voltage Peak-to-Peak: 40 mV
• Current rms: 25 mA


Readback Accuracy at 25°C ±5°C

• Voltage: 0.08%, +20 mV
• Current: 0.36%, +35 mA
