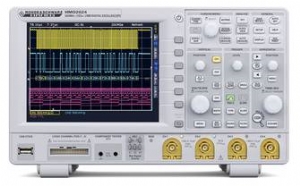

HMO1524

Osciloscópio digital de 150 MHz , 4 canais

• 2 GSa/s Real Time, Low Noise Flash A/D Converter (Reference Class)
• 2 MPts Memory, Memory Zoom up to 50,000:1
• MSO (Mixed Signal Opt. HO3508) with 8 Logic Channels
• Serial Bus Trigger and Hardware accelerated Decode incl. List View. Options: I2C + SPI + UART/RS-232, CAN/LIN
• Automatic Search for User defined Events
• Pass/Fail Test based on Masks
• Vertical Sensitivity 1 mV/div.
• Offset Control ±0.2...±20 V (150 MHz and 200 MHz devices only)
• 12 div. x-Axis Display Range, 20 div. y-Axis Display Range (VirtualScreen)
• Trigger Modes: Slope, Video, Pulsewidth, Logic, Delayed, Event
• Component Tester, 6 Digit Counter, Automeasurement: max. 6 Parameters incl. Statistic, Formula Editor, Ratiocursor, FFT: 64 kPts
• Fan: Silence redefined
• 3 x USB for Mass Storage, Printer and Remote Control
