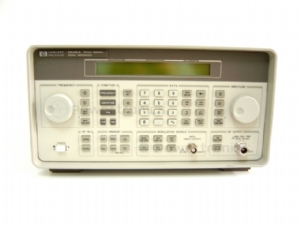

8648A

The HP 8648A family of synthesized signal genera-tors delivers solid performance and reliability at an affordable price.

These signal generators provide the features and performance needed for semi-automated receiver testing and for use in a variety of general-pur-pose applications over a 9 kHz to 4000 MHz frequency range.

The HP 8648 series provides enhancements in frequency range, residual FM, level accuracy, and phase noise, in addition to optional high power, pulse modulation, and waveform modulation. The HP 8648 series provides  ±1 dB absolute amplitude accuracy up to 2.5 GHz. All of the models offer ultra stable dc FM, with ±500 Hz carrier frequency accuracy below fre-quencies of 1001 MHz, and low RF leakage.

Specifications
• Frequency: 100 kHz to 1000 MHz
• Resolution: 0.001 Hz
• Display:10 Hz
• Power Requirements: 90 to 264 V, 48 to 440 Hz; 170 VA max.
• Operating Temperature: 0° to 50° C
• Leakage: Conducted and radiated interference meets MIL-STD-461B RE02 and FTZ 1046. • • Typically < 1 µV.
