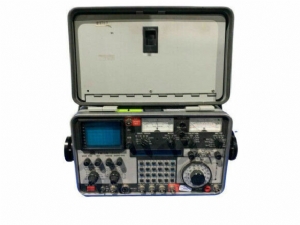

1200 Super S

A cost effective alternative for analog cellular, SSB, paging and mobile radio testing.
• Analog meter and VFD (Vaccum Fluorescent Display) offers high visibility in all linghting conditions.
• Convenientservice analayzer with duplex and simplex connectors
• Stardard internal spectrum analyzer to 1 GHz
• Built-in 1 Mhz oscilloscope
• Comprehensive testing of analog and advanced digital paging with the AC510 option

RF Solutions
Designed for land mobile professionals with demanding RF testing requirements, the 1200 Super S has a sensitive 2 µV triple conversion receiver capable of monitoring AM, FM and SSB carriers within the low band, VHF, UHF and high band ranges.

Depending on yuor specific needs, the 1200 Super S also gives you the choice of receiving straight off the air or through a direct connevtion to a T/R port.

Recognized for its versatility, the 1200 Super S supports DCS, DTMF and pulsed audio signaling formats.

The 1200 Super S also meets RF measurement needs for:
• RF frequency error
• RF power
• Audio frequency error
• CTCSS frequency
• CTCSS modulation

In duplex mode the 1200 Suoer S is capable of simultaneously generating and receving frequency offsets in 2.5 KHz steps. The duplex feature can be configured to operate in three modes:
• Testing using separate transmit and receive ports
• Testing using  one common transmit/recice port
• Off-the-air duplex testing

With standard features like a 1000 MHz spectrum analyzer and buit-in 1 MHz oscilloscope, the 1200 Super S virtually eliminates the need for costly additional equipment purchases. An optional tracking generator makes cable testing simple
