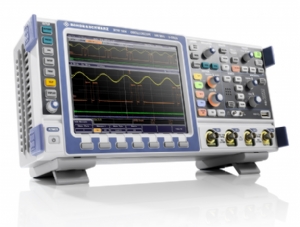

RTM2052

The R&S®RTM2052 model with 500 MHz bandwidth offer a maximum sampling rate of 5 Gsample/s and a maximum memory depth of 20 Msample. As a result, they can display signals accurately, right down to the details, as well as provide high time resolution, even for long sequences.

• Signal analysis: quick results
• Debugging: everything at a glance
• Usability: smart concepts
• Accuracy: our strength
• Logic analysis: more details
• Serial protocols: easy triggering and decoding

Benefits
Signal analysis: quick results
• Signal details at the push of a button: QuickMeas
• Measurement results in detail: powerful cursor functions
• Focus on details: zoom and markers
• Fast time to results: switch on, measure and done

• Debugging: everything at a glance
• Settings in only seconds: mask test
• Integrated: FFT analysis
• To the point: comprehensive triggering capabilities

Usability: smart concepts
• Easy orientation: color-coded controls
• Fast access: flat menus
• Fault-tolerant: undo/redo function
• See more: high-resolution XGA display
• Two displays instead of one: VirtualScreen
• Remote control, data exchange: diverse interfaces
• Multilingual: choice of nine languages

Accuracy: our strength
• 1 mV/div: full measurement bandwidth
• Frontends: low noise and low crosstalk
• Deep memory: acquire long sequences

Logic analysis: more details
• Precision measurement: up to 5 Gsample/s sampling rate
• Deep memory: acquire long sequences
• Better overview: VirtualScreen
• Everything at a glance: activity display

Serial protocols: easy triggering and decoding
• Tools for protocol analysis
•  Intuitive navigation

Specifications
Vertical system

Number of channel:	2
Bandwidth (-3 dB) at 50 Ω:	500 MHz
Rise time (calculated):	700ps
Input impedance:	50 Ω 1.5 % 1 MΩ ± 1 % with 12 pF ± 1 pF
Input sensitivity: (max. bandwidth in all ranges)	50 Ω: 1 mV/div to 1 V/div  1 MΩ: 1 mV/div to 10 V/div
Resolution:	8 bit

Acquisition system

Max. sampling rate (realtime):	2.5 Gsample/s; 5 Gsample/s, interleaved
Acquisition memory:	10 Msample; 20 Msample, interleaved
Decimation algorithms: (combination of decimation mode and waveform arithmetics possible )	sample, peak detect, high resolution
Waveform arithmetics:	off, envelope, average, smooth, filter
Interpolation:	sin(x)/x

Horizonltal system

Timebase range:	1ns/div to 50 s/div
Timebase accuracy:	±3.5 ppm
Channel deskew:	±100 ns

Trigger system

Trigger types:	edge, width, video, pattern, runt, slew rate, B-trigger
Trigger level:	±10 div from center of screen

Analysis and measurement functions

QuickMeas: (at the push of a button, internal measurement values are written directly onto the waveform and d continuously)	peak-to-peak voltage, pos. peak, neg. peak, rise time, fall time, mean value, RMS value, time, frequency
Automated measurements:	31 measurement functions
Cursor measurements:	14 measurement functions
Waveform mathematics:	20 measurement functions

MSO option

Digital channels:		16 (2 logic probes)
Input impedance:		100 kΩ || 4 pF
Sampling rate	2 logic probes connected 1 logic probe connected	2.5 Gsample/s per channel 5 Gsample/s per channel
Acquisition memory	2 logic probes connected 1 logic probe connected	10 Msample per channel 20 Msample per channel

General data

Dimensions (W × H × D):	403 mm × 189 mm × 142 mm (15.87 in × 7.44 in × 5.59 in)
Weight:	4.1 kg (9.04 lb)
Screen:	8.4" XGA TFT color display (1024 × 768 pixel)
Interfaces:	2 × USB host, USB device, LAN, GPIB (optional), DVI-D for external monitor
