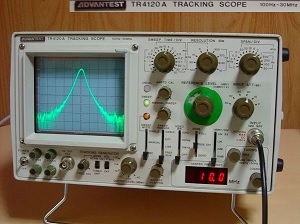

The TR4120A is a tracking scope having the following performance:
Measurement range: 100 Hz to 30 MHz
Resolution: Max. 10 Hz
Input sensitivity: Max. -135 dBv
Dynamic range: 80 dB
Fuerthermore, since TR4120A includes a tracking generator, it directly reads and analyzers the frequencycharacteristics in addition to analyzing the spectrum. Also, connecting an ADVANTEST frequency counter to this device provides a function to read the frequency on the marker point at an accuracy specified by the frequency counter.
This tracking generator is operated as a selecive amplifier (or tuned amplifier). Using this function, some weak signal is selected and amplified. The ON-AIR signal can be measured at an accuracy specified by the carrier frequency counter.
SpecificationsFrequency
Range:
|
| 100 Hz to 30 MHz |
Center frequency accuracy:
|
| Within ±500 kHz |
Frequency span:
|
| At SPAN/DIV switch 50 Hz/div to 20 MHz/div 1,2,3 step |
Frequency span:
|
| Within ±10% |
Stability:
| Residual FM: Noise sideband:
| 5 Hz (after automatic stabilization) Less than -55 dB (at 100 Hz IF bandwidth, more than 2 kHz away from carrier) |
Resolution:
| 3 dB bandwidth:
| 10 Hz to 100 kHz 1, 3 setp |
