E6380A

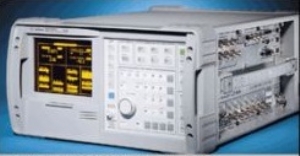

The Agilent 8935 CDMA Cellular/PCS Base Station Test Set is a one-box tool designed to meet the needs of installation teams, service providers, and network manufacturers when installing, testing, and maintaining CDMA base stations at both the cellular and PCS frequency bands. It also can be used to test AMPS base stations.

Features include:
• Waveform quality rho (?), frequency error, code domain power, timing, and phase analysis
• Analog and digital (CDMA) capabilities
• Firmware upgradeable via PCMCIA to flash memory
• Automation software to increase measurement repeatability
• Built-in AWGN source for calibrated Eb/No settings

This Test Set utilizes a bright electroluminescent display for reading data. All connectors are recessed and mounted on one side allowing unobstructed, out-of-the-way hook up. Its rugged design includes a hand strap for portability, a membrane keypad, gasketed display, stand up operation, filtered airflow, and a rugged exterior to help the Test Set from bumps and shocks.

The user interface features pull down menus, one-key measurement execution, and fast measurement speed. Measurement data can be output to a printer or a PCMCIA memory card. The Test Set’s firmware is user upgradeable with a PCMCIA card to flash memory. Thus, new features and capabilities can be added
without returning the unit to the service center.
